Usage

Binary package

The binary package contains an Win64 executable along with configuration files.

File

Description

racelogger.exe

Win64 executable

racelogger.ini

Configuration values

logging.conf

Logger configuration

Execution

Executing the program without any parameters will show the usage of the program:

c:\racelogger> racelogger
Usage: racelogger [OPTIONS] COMMAND [ARGS]...

  Command line interface for racelogger

Options:
  --config TEXT  configuration file  [default: racelogger.ini]
  --url TEXT     url of the crossbar server  [default: wss://crossbar.iracing-tools.de/ws]
  --realm TEXT   crossbar realm for racelogger   [default: racelog]
  -v, --verbose  set verbosity level  [x>=0]
  --version      Show the version and exit.
  --help         Show this message and exit.

Commands:
  ping
  record

Recording

In order to record a race use the record command:

c:\racelogger> racelogger record --help
Usage: racelogger record [OPTIONS]

Options:
  --user TEXT         user name to access crossbar realm  [required]
  --password TEXT     user password  to access crossbar realm  [required]
  --name TEXT         name of the recording event.
  --description TEXT  event description
  --speedmap INTEGER  interval (in seconds) for sending the speedmap
                      [default: 60]
  --logconfig TEXT    name of the logging configuration file
  --help              Show this message and exit.

The parameters name and description will be used in the frontend to give some information about the race. Here is an example for the recording:

c:\racelogger> racelogger record --name "NEO 2021/22 Hockenheim 6h" --description "Event 1/6"

Tip

Use double quotes (”) around values containing blanks and/or other special characters.

Note

The values of the missing options are retrieved from the racelogger.ini configuration file. (see below)

Note

  • Make sure you have set MaxCars to 63 in iRacing. This setting defines the amount of cars for which the iRacing server transfers data to the iRacing simulator.

    In order to get a complete race overview we need the data for all cars. Note, this setting is just for the data transfer.

    You find this setting in the iRacing simulator at Options -> Graphic

_images/max-cars.png

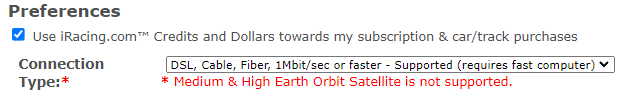

  • Make sure you have the highest available connection type setting active. You find this in your iRacing account page in the preferences section.

    The setting DSL, Cable, Fiber, 1MBit/sec or faster seems to work best without losing any data.

    _images/account-settings.png

    When using a smaller value this may cause iRacing to send fewer car data at times which in turn causes the racelogger to assume that a car is offline and mark it as OUT during the period when no data is recieved for a particular car.

Warning

  • When recording you should not use the iRacing replay function. Some telemetry values will be invalidated when the replay mode is active. In such cases the racelogger may produce invalid data.

Configuration

This is a sample configuration which is used for my own iRacelogger backend. When running your own iRacelogger backend you need to adapt the url parameter.

TODO: link to the big picture

racelogger.ini

[DEFAULT]
url=wss://crossbar.iracing-tools.de/ws
logLevel=info
realm=racelogger

[record]
user=dataprovider
password=EnterPasswordHere
speedmap=60
